EasyAssist Remote.
Can be placed to improve access to units that are too high, low or out of reach for customers
Products
EasyAssist Remote.

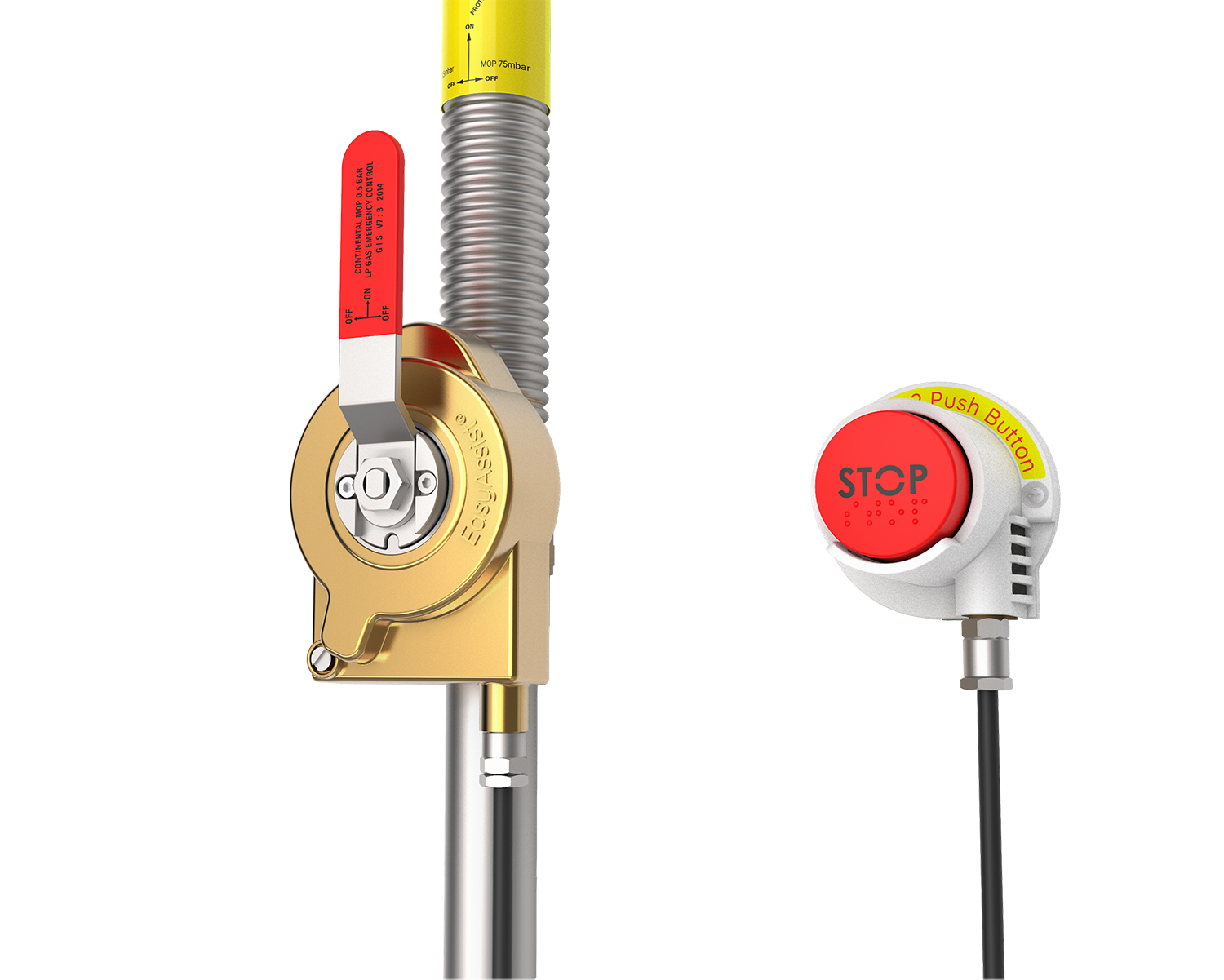

EasyAssist Remote Activation is designed for improving the placement of ECV’s which are inaccessible to the customer. It can be easily retro fitted to an ECV in minutes and it allows for the gas to be turned off up to 1m away without the need to relocate the ECV.
EasyAssist Remote can be placed to improve access with units too high, too low or out of reach for customers (e.g. in a cupboard).
Why EasyAssist Remote Makes a Difference.

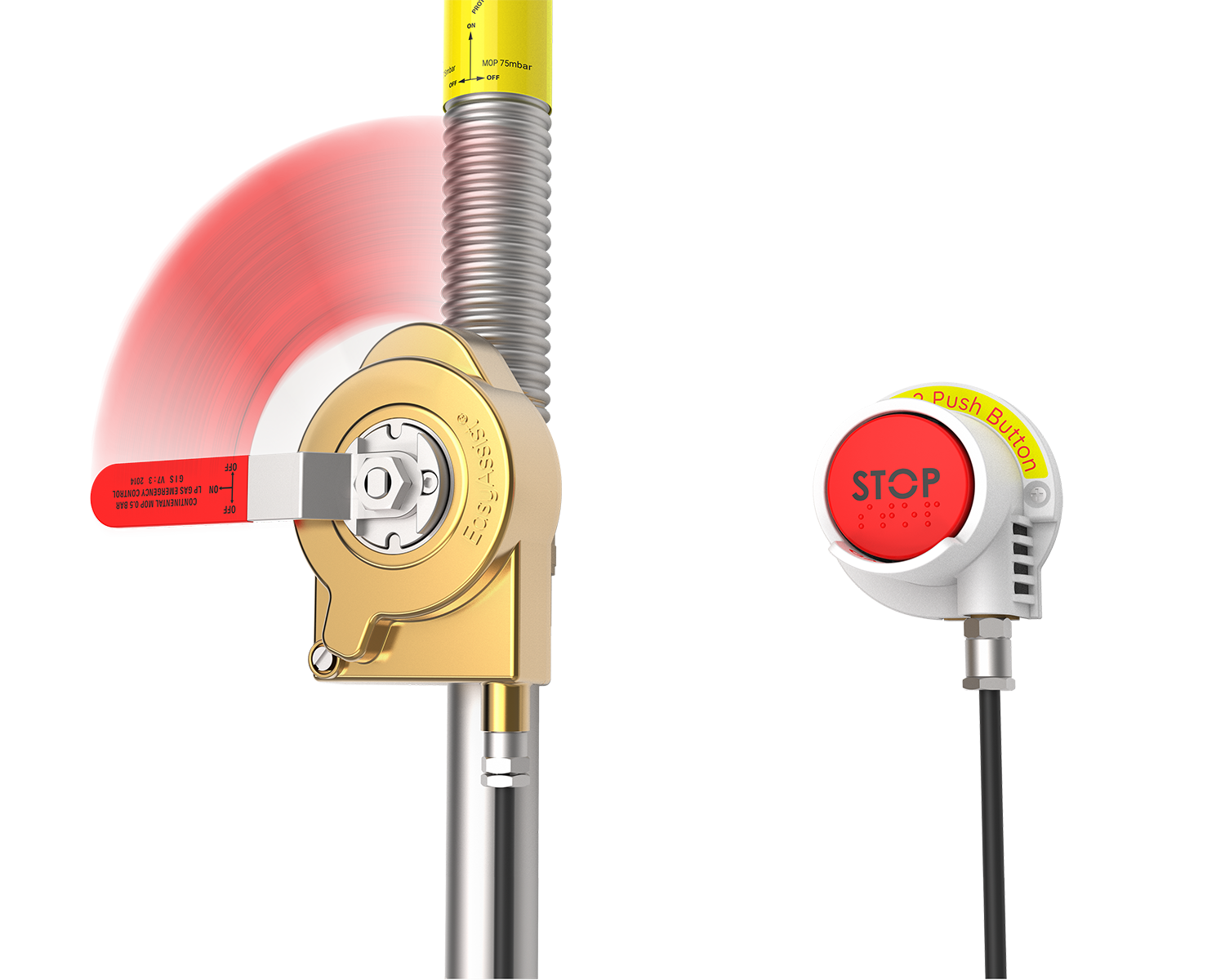

A simple retrofit solution giving customers safe, easy access to turn off gas, even when the ECV is hard to reach — with a power-assisted handle, thermal cut off and remote stop button.
Customer Benefits.
Improved access
Simple to install without the disruption of moving an ECV
Features include power-assist ECV handle, which requires only a light touch to close automatically
Simple and clear to use
Includes built in thermal cut off, which will activate in the case of a fire
Safety Benefits.
Thermal cut off (TCO) feature built in as standard – tested to GIS-DIN 3586
Variety of temperature ranges available (57°C, 68°C, 79°C, 141°C, 182°C) with 93°C as standard
No impact on pressure or flow
Allowable leakage after a thermal cutoff is 10-100 times less than a standard TCO (due to V7 ECV standard Vs TCO standard)
Handle still included in the design and can be used to manually override if required
Retrofit to a standard ECV within minutes (currently Continental and Sperryn) without the need for a cut-out on a live supply
Benefits for Engineers.
Quick and easy to install.
Reduces the time and effort for ECV relocations
Helps PSR registered customers
Simple to explain to the end customer
Safety Benefits.
Thermal cut off (TCO) feature built in as standard – tested to GIS-DIN 3586
Variety of temperature ranges available (57°C, 68°C, 79°C, 141°C, 182°C) with 93°C as standard
No impact on pressure or flow
Allowable leakage after a thermal cutoff is 10-100 times less than a standard TCO (due to V7 ECV standard Vs TCO standard)
Handle still included in the design and can be used to manually override if required
Retrofit to a standard ECV within minutes (currently Continental and Sperryn) without the need for a cut-out on a live supply
Customer Benefits.
Improved access
Simple to install without the disruption of moving an ECV
Features include power-assist ECV handle, which requires only a light touch to close automatically
Simple and clear to use
Includes built in thermal cut off, which will activate in the case of a fire
Benefits for Engineers.
Quick and easy to install.
Reduces the time and effort for ECV relocations
Helps PSR registered customers
Simple to explain to the end customer
Specifications
Installation should always be carried out by a qualified gas engineer — these guides show them how to set up EasyAssist safely and efficiently
Manufactured by Continental: Quality Policy BS EN ISO 9001 and Kitemarks GIS/PL3, KM 592476 and GIS/V7 KM 580196 For use on the Continental ¾” by ¾” straight and the ¾ by 1” right angled ECV
- +93°C thermal cut-off temperature
- Operational temp -20°C to +40°C
- ISO:9001 Quality Management
Body brass to BS EN 12165:1998 CW617N - Thermal shock with repeated cycling testing (24 hrs)
- Packaging with detachable customer info card and installation template.
- Quick to install & no formal training required
- 5 years installation warranty
- Reuse existing ECV handle, alternatively can be purchased separately
